(주)어스이엔지

보유장비 및 S/W

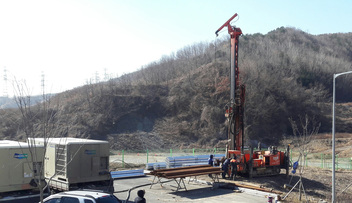

시추장비Drill Rig

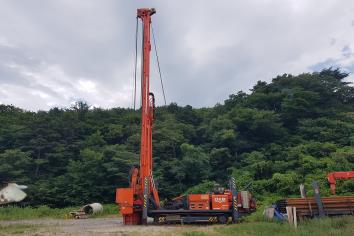

DR01/ D&B 30W

충북22고5389 (지하수 개발)
자주식/5톤장축(한진D&B)
13.1ton, W2.2/L11.839/H3.059
Engine: 293HP@2200RPM
Max. D: 1,000m
Max. Pull-up: 30ton
Max. DownForce: 18ton
Max. Bit: 10”

DR02/ D&B 60W+

충북22고5314 (대구경시추)
자주식/트레일러 (한진D&B)
18.4ton, W2.42/L11.94/H3.07
Engine: 288HP@1900RPM
Max. D: 1,500m@5”DP
Max. Pull-up: 90ton
Max. DownForce: -
Max. Bit: 14”

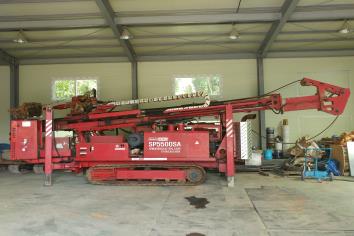

DR03/ SPA-5500SDA

충북22고5385 (탐사시추)
자주식/5톤장축(데스코)
13.51ton, W2.2/L6.5/H3.2
Engine: 273HP@2200RPM
Max. D:500m@HQ/1,500m@NQ
Max. Pull-up: 12ton
Max. DownForce: 6ton
Max. Bit: 6”

DR04/ SP-5500SDA

경기22고5418 (탐사시추/경사)
자주식/5톤장축(데스코)
13.5ton, W2.34/L8.54/H2.97
Engine: 207HP@1,900RPM
Max. D:500m@HQ/1,500m@NQ
Max. Pull-up: 12ton
Max. DownForce: 6ton
Max. Bit: 6”

DR05/ SPA-5000A

충북22고5407 (탐사시추/경사)
자주식/5톤장축(데스코)
9.496ton, W2.1/L8.6/H2.75
Engine: 113HP@2,400RPM
Max. D: 800m
Max. Pull-up: 12ton
Max. DownForce: 6ton
Max. Bit: 4”

DR06/ SP-4500SD

충북22고5387 (탐사시추)
자주식/5톤장축(데스코)
5.44ton, W2.0/L4.9/H2.6
Engine: 100HP@,2300RPM
Max. D: 500m
Max. Pull-up: 10ton
Max. DownForce: 5ton
Max. Bit: 4”

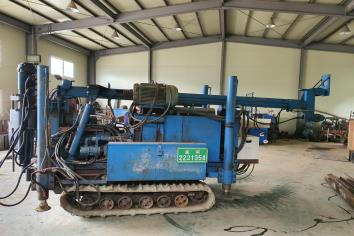

DR07/ TBM-200

충북22고1354 (광산용 TBM)
자주식/5톤장축(우영기계)
5ton, W2.5/L5.0/H2.5
Engine: 100HP@3,400RPM
Max. D: 갱내200m
Max. Pull-up: 5ton
Max. DownForce: 5ton
Max. Bit: 다양함

DR08/ SP-4600A

대전22다6814 (탐사시추/경사)
자주식/5톤장축(데스코)
4.95ton, W1.95/L45.3/H2.45
Engine: 76HP@2,600RPM
Max. D: 400m
Max. Pull-up: 15.9ton
Max. DownForce: 5.5ton
Max. Bit: 6.5”

DR09/ ST-2005

자주식/1톤 (덕산기공)
2.4ton, W1.4/L4.3/H1.87
Engine: 55HP@2,400RPM
Max. D: 65m
Max. Pull-up: 2.5ton
Max. DownForce: 2.5ton
Max. Bit: 4”

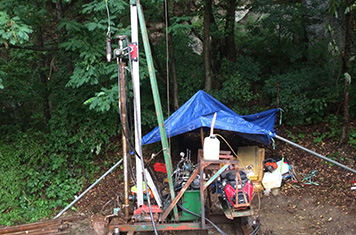

DR10/ Portable

스키식/1톤 (어스이엔지)
0.7ton, W0.7/L2.5/H3.1
Engine: 18HP@2,200RPM
Max. D: 20m
Max. Pull-up: 1ton
Max. DownForce: 25kg
Max. Bit: 4”

시추 부대 장비Additional Drilling Equipment

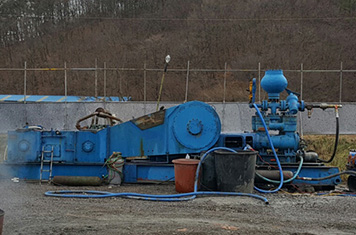

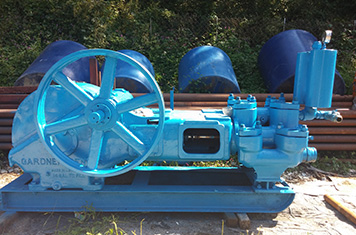

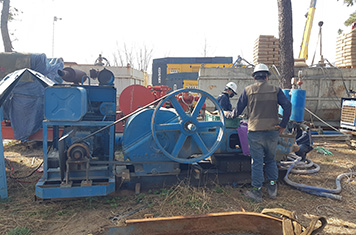

AE01/ FXD 172

펌프 (Gardener Denver)
Pump type: Duplex
3.2ton, W1.5/L2.9/H1.0
Piston Rod Load: 5,112kg
Displacement LPM: 700~1616 Pump: 57~85 RPM
Jack-shaft: 342~510 RPM
Working P: 18~40 kg/cm3

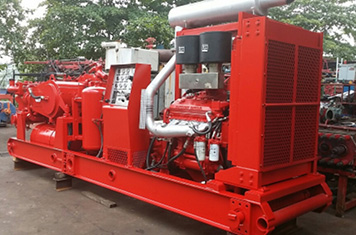

AE02/ HT-400

펌프 (Halibuton)
Pump type: Triplex
9.5ton, W1.7/L6.1/H1.9
Gear Type: 8:06:01
Engine: 450HP
Max. flowrate: 8bpm
Plunge type: 4”plungers
Max. Working P: 14,000psi
